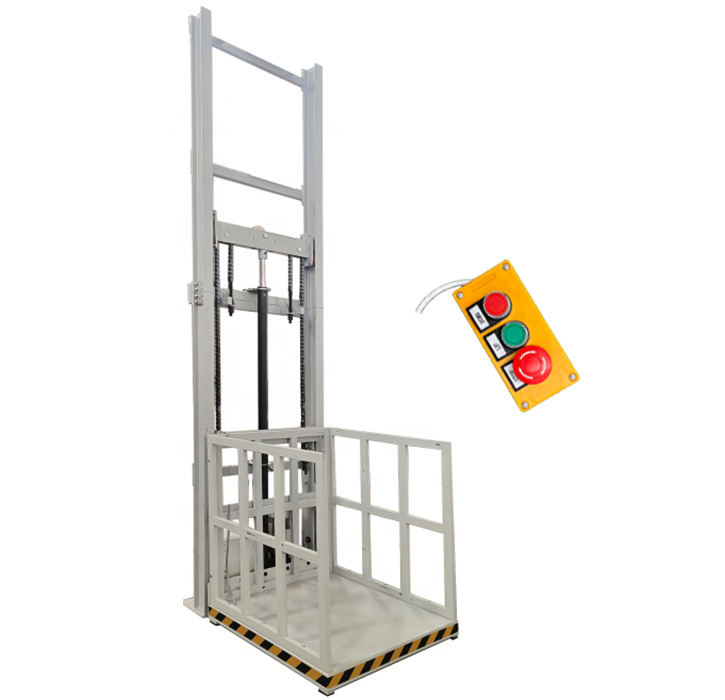

8m 10m Vertical Lift Indoor & Outdoor Cargo Lift Hydraulic Pump Custom Domestic Platform Lift
The 8m 10m Vertical Lifter is a versatile hydraulic platform lift designed for both indoor and outdoor applications, facilitating efficient cargo handling and vertical transportation in various settings. This lift offers customizable features to meet specific operational requirements.
Key Specifications:
| Specification | Details |
|---|---|
| Lift Mechanism | Chain Lift |
| Drive/Actuation | Hydraulic |
| Power Supply | Customized to local voltage standards |
| Platform Size | Customizable to client specifications |
| Minimum Lifting Height | Customized |
| Overall Dimensions | Customizable |
| Weight | Approximately 700 kg |
| Warranty | 1 year |
Key Features:
- Hydraulic Operation: Ensures smooth and efficient lifting and lowering of cargo.
- Customizable Design: Dimensions, lifting height, and platform size can be tailored to specific needs.
- Easy Operation: User-friendly controls with options for control panel and remote controller.
- Durable Construction: Built with high-quality materials to withstand various environmental conditions.
- Safety Features: Designed with safety mechanisms to ensure secure operation.
Applications:
- Hotels: Facilitates the movement of goods and luggage between floors.
- Building Material Shops: Assists in transporting heavy materials to different levels.
- Food & Beverage Factories: Enables efficient handling of products and raw materials.
- Restaurants: Aids in moving supplies and equipment between storage and kitchen areas.
- Home Use: Provides a solution for multi-level homes requiring vertical cargo movement.
- Energy & Mining: Supports the transportation of equipment and materials in industrial settings.
This vertical lifter is particularly beneficial in environments where efficient vertical transportation of goods is essential. Its customizable features allow it to be adapted to various operational needs, enhancing productivity and safety.
Hydraulic lifting elevator is a cargo elevator driven by hydraulic system, which is used for the linear transport of goods between two points or more points on the floor. These hydraulic elevators are generally used in factories, warehouses, shopping centers, hotels, airports, stations and exhibition halls.
And we can provide customized services, including color, size, lifting height, load capacity, etc. If you have any requirements, please contact us!
Product details:

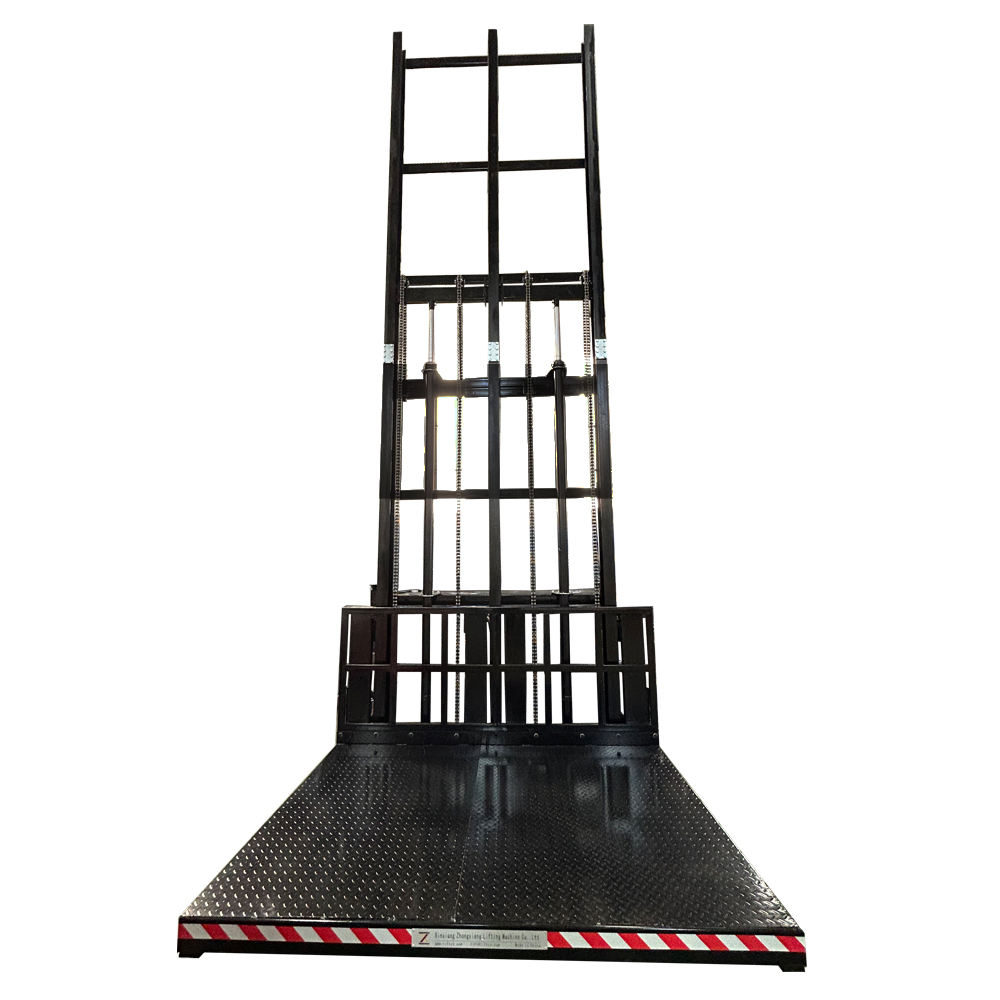

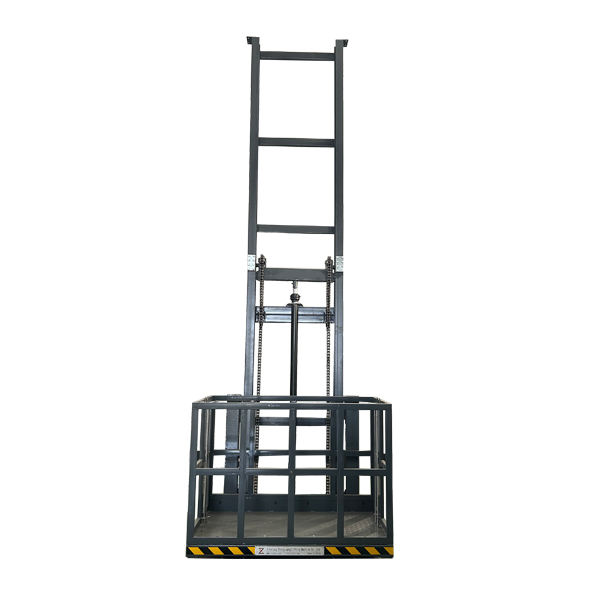

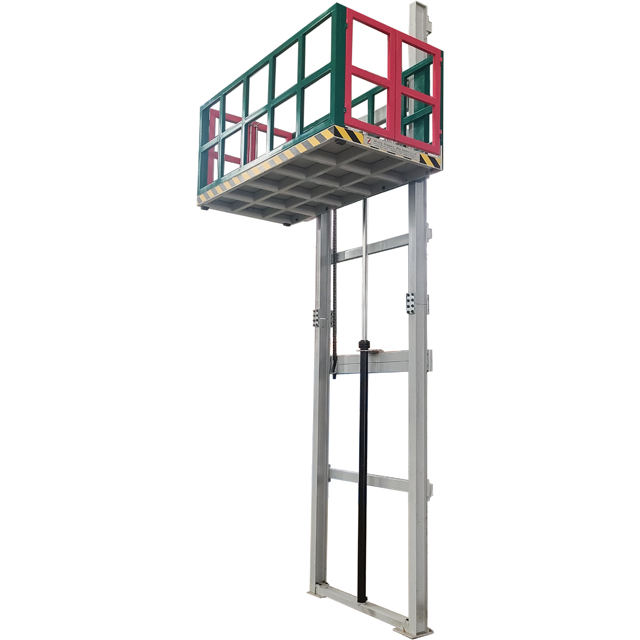

8m 10m vertical lifter indoor outdoor cargo lifting elevator hydraulic pump customized home platform lift
Guardrail specifications & Goods in and out direction
Way of goods in and out
Guardrail specifications
Product assembly
(Product assembly steps are simple and can be completed without professional and technical personnel.)
Assembly renderings
Technical Parameters:
| Model | Platform size L * W (mm) | Maximum load (kg) | Lifting Height H (mm) | Minimum height X (mm) | Barrier height B (mm) | Lifting speed mm/s | Power (Kw) | Voltage (V) | Frequency (Hz) |
|---|---|---|---|---|---|---|---|---|---|
| SJD-1.1 | 1500*2000 | 1000 | 3000 | 100 | 1000 | 80 | 2.2 | 380 | 50 |
| SJD-2.1 | 2000*2000 | 2000 | 4000 | 120 | 1000 | 80 | 3 | 380 | 50 |
| SJD-3.1 | 2000*3000 | 3000 | 5000 | 120 | 1000 | 80 | 4 | 380 | 50 |
| SJD-1.2 | 1500*2000 | 1000 | 6000 | 100 | 1000 | 80 | 2.2 | 380 | 50 |
