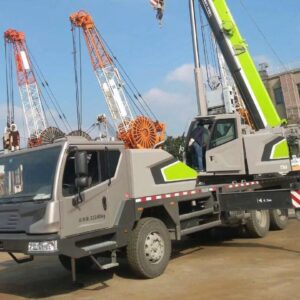

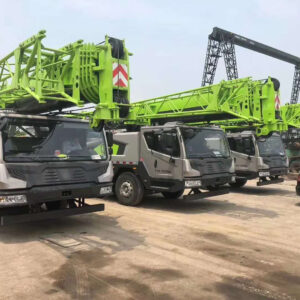

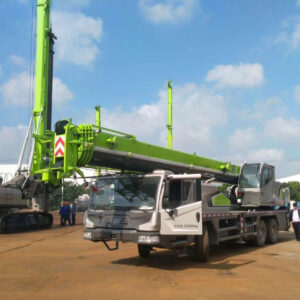

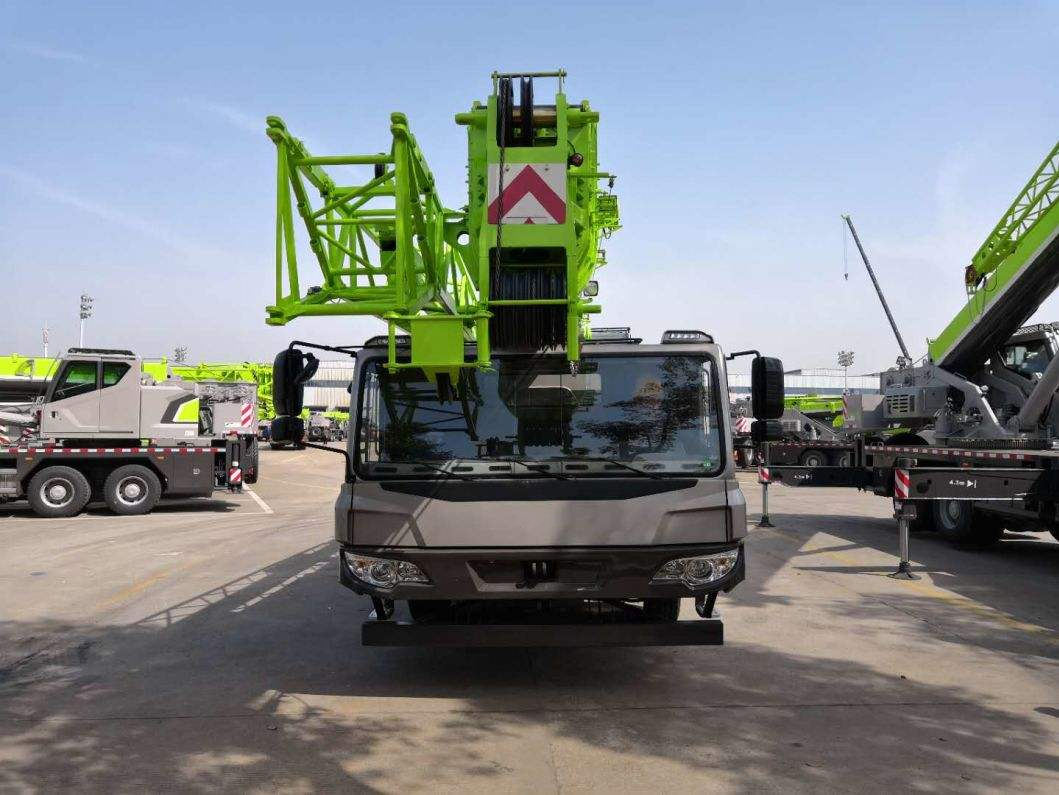

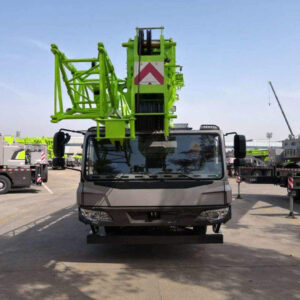

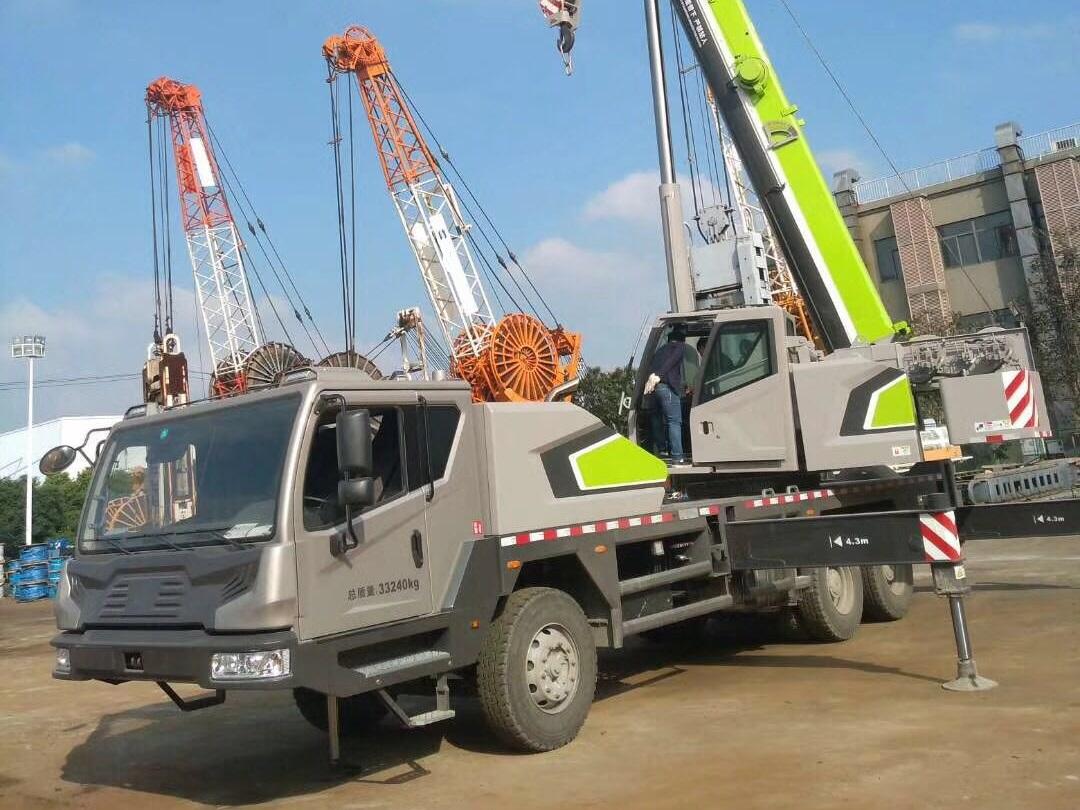

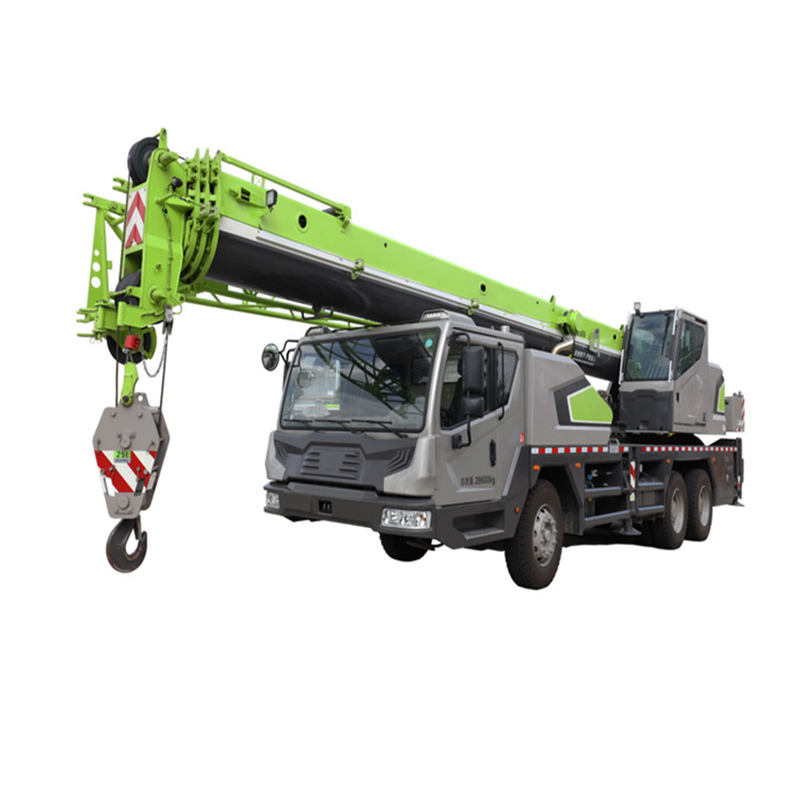

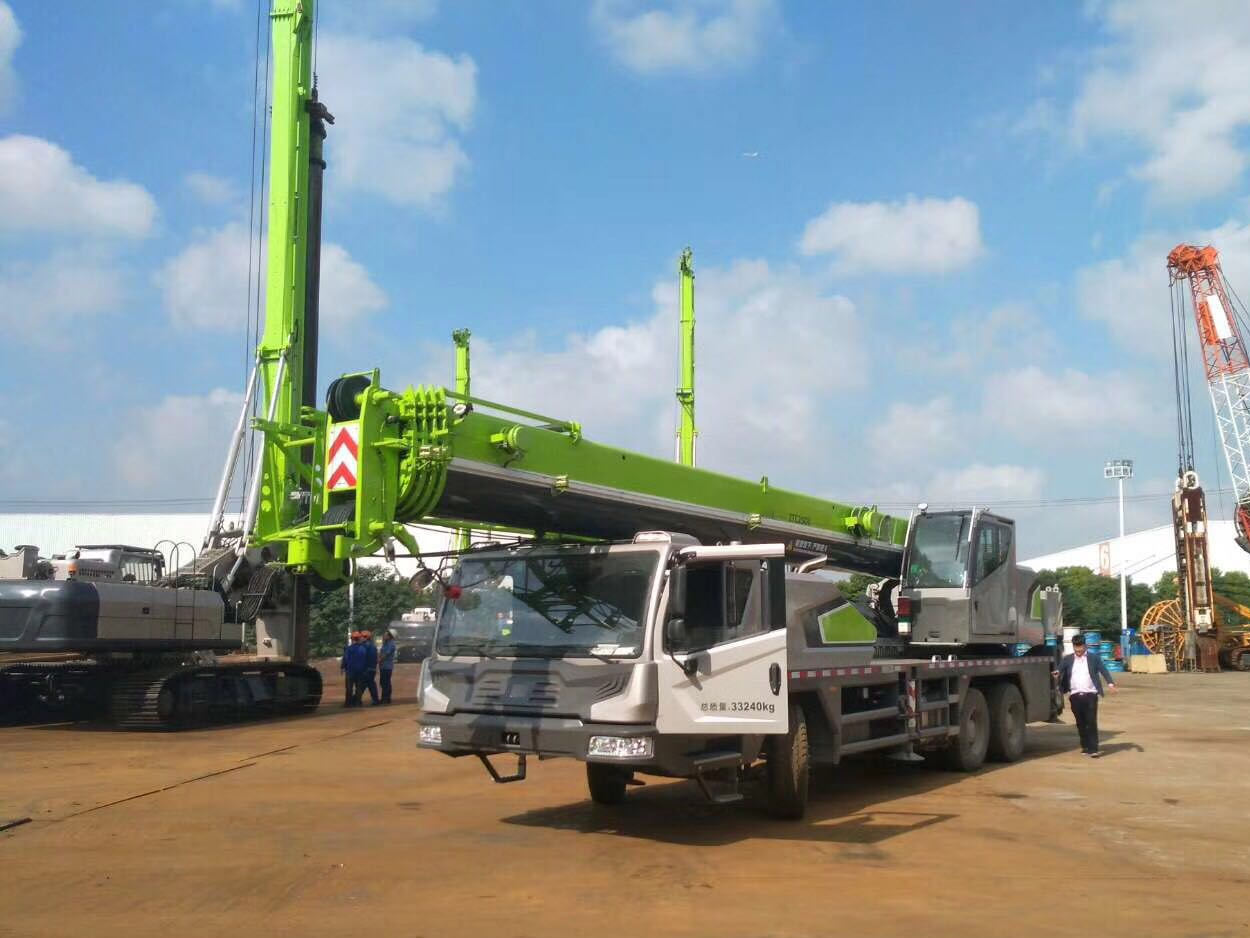

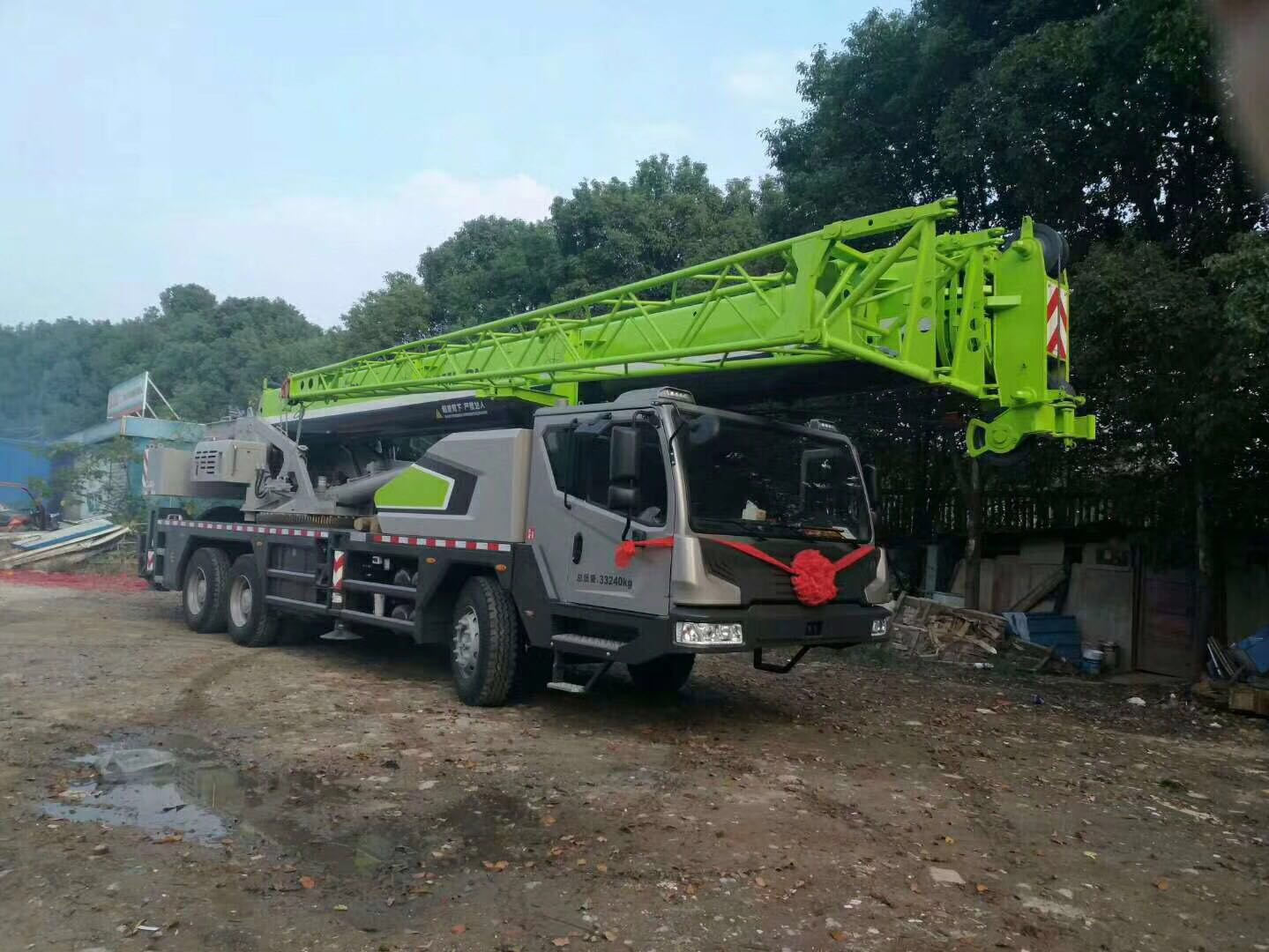

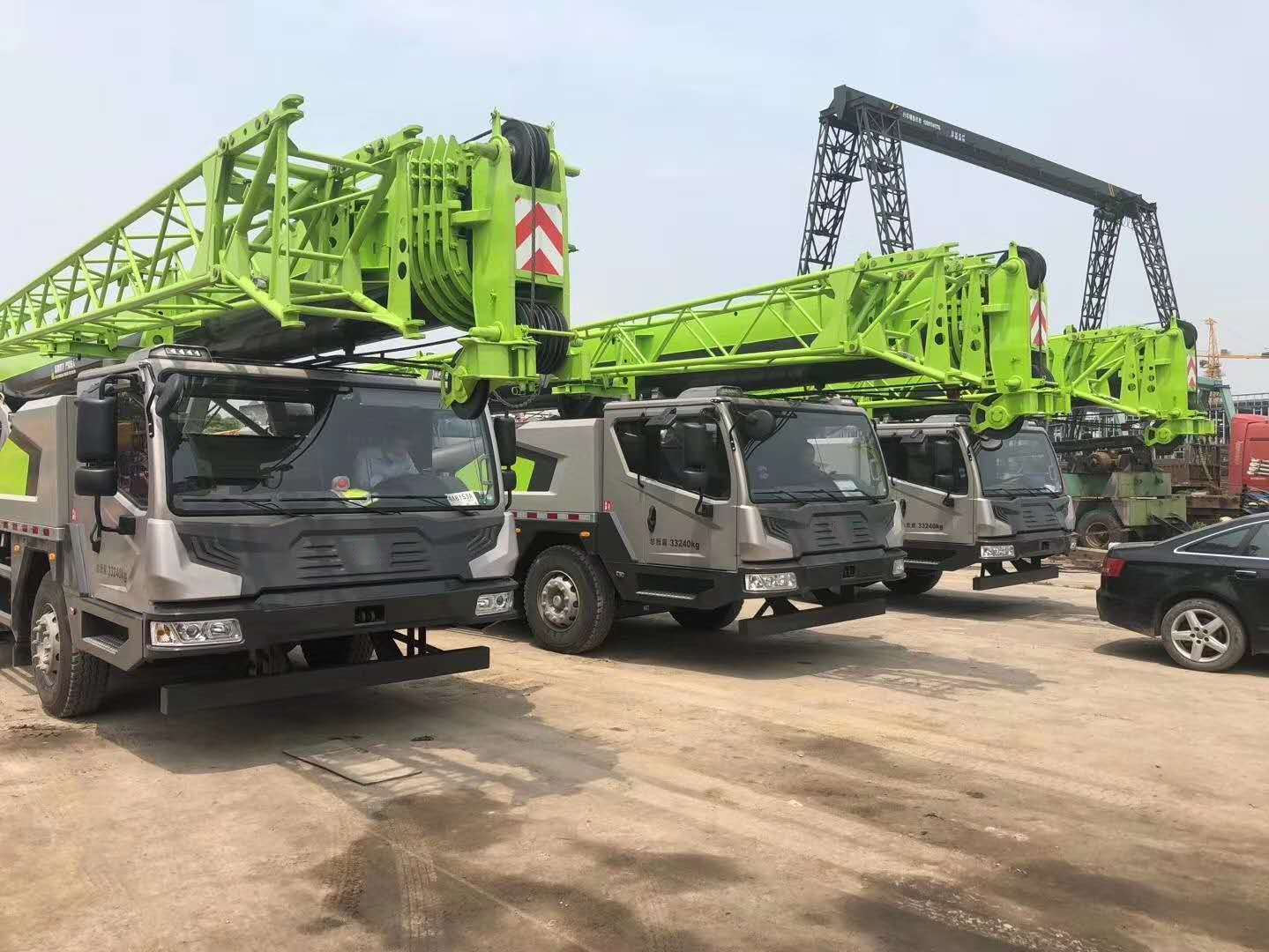

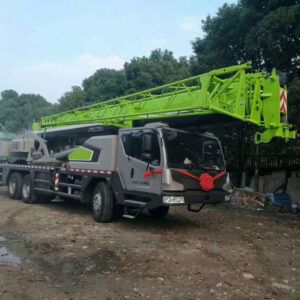

30 Ton Four-Boom Mobile Crane Truck (ZTC300V462)
Product Description
The 30 Ton Four-Boom Mobile Crane Truck is a high-performance hydraulic lifting machine designed for efficient and reliable heavy-duty operations. Built with advanced engineering and strong structural components, it is widely used in construction, logistics, and industrial lifting applications.
With a maximum lifting capacity of 30 tons and a working height of up to 43 meters, this crane delivers excellent performance, stability, and operational flexibility for demanding job sites.
Key Features
- High Lifting Capacity
Maximum rated lifting capacity of 30 tons for heavy-duty operations. - Extended Lifting Height
Main boom lifting height up to 42.1m and jib height up to 50m. - High Operating Efficiency
Strong hydraulic system ensures smooth lifting, lowering, and rotation. - Fast Working Speed
High hoist rope speed up to 120 m/min for main and auxiliary winches. - Strong Mobility Performance
Maximum driving speed of 90 km/h with gradeability up to 42%. - Stable Crane Structure
Large outrigger span ensures stability during lifting operations. - Durable Core Components
Includes engine, PLC, pump, gearbox, motor, bearing, and hydraulic systems.
Specifications
Working Performance
| Specification | Value |
|---|---|
| Max Rated Lifting Capacity | 30,000 kg |
| Max Load Moment (Basic Boom) | 990 kN.m |
| Max Load Moment (Main Boom) | 624 kN.m |
| Max Lifting Height (Main Boom) | 42.1 m |
| Max Lifting Height (Jib) | 50 m |
Working Speeds
| Function | Value |
|---|---|
| Main Winch Speed | 120 m/min |
| Auxiliary Winch Speed | 120 m/min |
| Boom Derricking Time | 25 s |
| Boom Telescoping Time | 84 s |
| Slewing Speed | 0–2.7 r/min |
Driving Parameters
| Parameter | Value |
|---|---|
| Max Driving Speed | 90 km/h |
| Gradeability | 42% |
| Minimum Turning Diameter | ≤ 20 m |
| Ground Clearance | 260 mm |
| Fuel Consumption | 28 L / 100 km |
Dimensions & Weight
| Specification | Value |
|---|---|
| Overall Dimensions | 13150 × 2500 × 3450 mm |
| Vehicle Kerb Mass | 32,389 kg |
| Operating Weight | 32,510 kg |
| Front Axle Load | 6,610 kg |
| Rear Axle Load | 25,900 kg |
| Tail Slewing Radius | 3265 mm |
| Boom Length | 10.7 – 42.0 m |
| Jib Length | 8 m |
Applications
- Construction site heavy lifting
- Infrastructure and bridge projects
- Industrial equipment installation
- Logistics and cargo handling
- Urban and highway construction works
- Large-scale engineering projects
Conclusion
The 30 Ton Four-Boom Mobile Crane Truck combines strong lifting capacity, advanced hydraulic control, and high mobility, making it a reliable and efficient solution for demanding lifting operations in construction and industrial environments.
