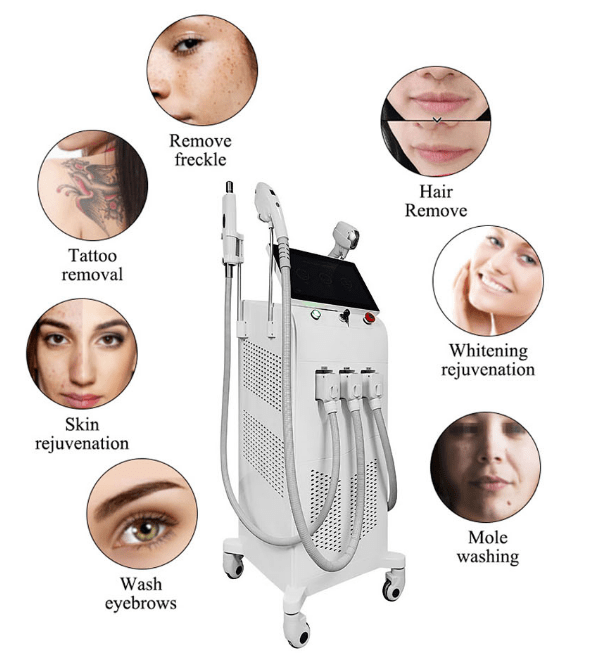

3-in-1 Multifunction Laser Machine

Product Overview

The 3-in-1 Multifunction Laser Machine is a high-performance aesthetic system designed for professional clinics and beauty businesses. This advanced unit integrates diode laser, intense pulsed light (IPL), SHR technology, and pico laser into one powerful platform, enabling a wide range of treatments with exceptional efficiency and precision.

The system combines optical and electrical energy technologies to deliver clinically proven results across different skin types and tones. With multi-wavelength capability and multiple treatment handles, it allows practitioners to perform hair removal, skin rejuvenation, pigmentation correction, and tattoo removal using a single machine.

Designed for safety, performance, and versatility, this system offers non-invasive treatments with minimal downtime, making it ideal for high-demand aesthetic environments.

---

Technology Overview

808 Diode Laser (755nm / 808nm / 1064nm)

Utilises long pulse laser technology to target hair follicles by absorbing melanin, effectively disabling hair regrowth. The sapphire cooling system ensures a safe and comfortable treatment experience.

IPL (Intense Pulsed Light)

A broad-spectrum light that penetrates the dermis to stimulate collagen production, improve skin texture, and treat pigmentation through photothermal and photochemical effects.

SHR Technology

Delivers continuous low-energy pulses (640nm–1200nm) for deep dermal papilla targeting, ensuring effective hair removal with improved comfort and simultaneous cooling.

Pico Laser Technology

Uses ultra-short pulse energy to break pigment particles into tiny fragments via photomechanical effects, enabling fast removal of tattoos and pigmentation without damaging surrounding tissue.

---

Specifications

Machine Overview

Specification	Details
Product Type	3-in-1 Multifunction Laser Machine
Display Screen	15.6 Inch Touchscreen
Gross Power	3000W
Cooling System	Water + Air + Semiconductor + TEC Cooling
Safety Monitoring	Water flow, temperature, high voltage detection

---

808 Diode Laser

Parameter	Details
Laser Power	600W
Wavelength	808nm
Energy	1–50 J/cm²
Pulse Width	1–500 ms
Frequency	1–10 Hz
Spot Size	12 × 24 mm

---

IPL Parameters

Parameter	Details
Power	800W
Wavelength	480–1200nm / 530–1200nm / 640–1200nm
Energy	1–50 J/cm²
Pulse Width	1–9 ms
Pulse Interval	1–99 ms
SHR Frequency	1–10 Hz
Cooling Levels	1–5

---

Pico Laser Parameters

Parameter	Details
Power	500W
Wavelengths	532nm / 1064nm / 1320nm
Pulse Width	10 ns
Energy	100–2500 mJ
Frequency	1–10 Hz
Spot Diameter	1–6 mm
Aiming Light	Far Infrared

---

Key Features

• 3-in-1 multifunction system for multiple aesthetic treatments
• Diode laser for permanent hair reduction
• IPL for skin rejuvenation and pigmentation treatment
• SHR technology for safe, painless hair removal
• Pico laser for tattoo and pigment removal
• Multi-wavelength system suitable for all skin types
• Advanced cooling system for comfortable treatments
• Real-time safety monitoring system
• High power output for professional use
• Non-invasive treatments with minimal downtime

---

Treatment Applications

• Hair removal for all skin types
• Tattoo removal
• Pigmentation and freckle removal
• Acne scar treatment
• Skin whitening and rejuvenation
• Mole and spot removal
• Birthmark treatment
• Eyebrow cleaning

---

Applications

• Beauty salons
• Aesthetic clinics
• Dermatology centres
• Medical spas
• Professional cosmetic treatment facilities
