10 Ton Truck Mounted Crane

Name: 10 Ton Truck Mounted Crane - Horsban Global Traders
SKU: GTM-202503272036
Price: 902474.06 ZAR
Availability: InStock

R902 474,06

1.Throttle Control System Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.

2.End position automatic hook device Maximum savings in preparation time before and after operation, to ensure that customer’s vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.

3.Hoisting overwinder device If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.

4.Slewing locking device Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.

5.Dual pump converging The hydraulic system adopts dual high pressure gear pump, multi-way valve hoisting joint to realize the converging, to improve the speed of winch, at the same time, it can realize the compound action of crane.

6.Torque limiter It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage acc

SKU: GTM-202503272036 Category: Construction Machinery-Equipment & Building Materials

Description

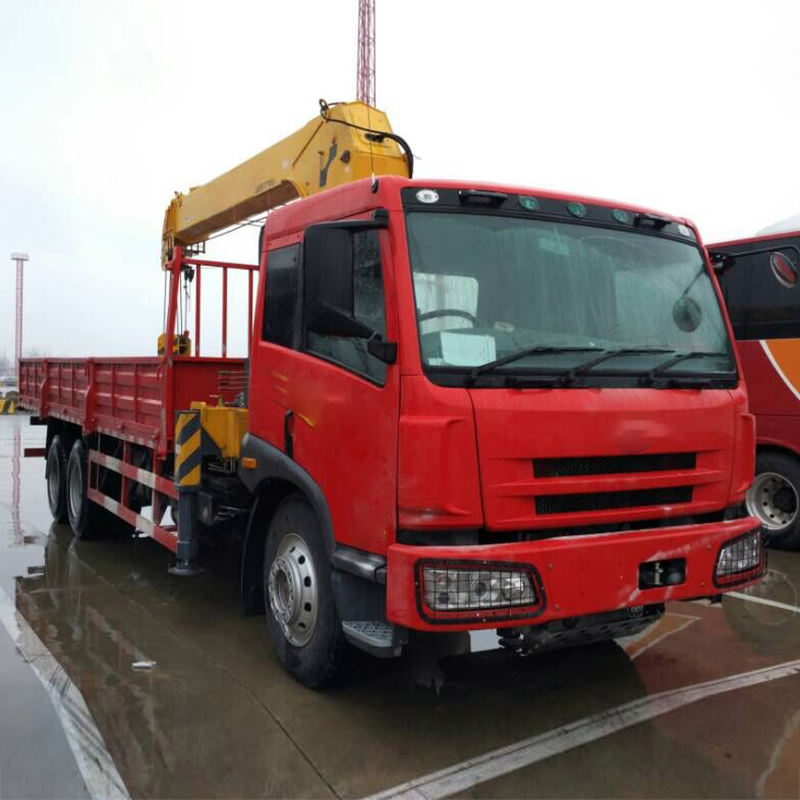

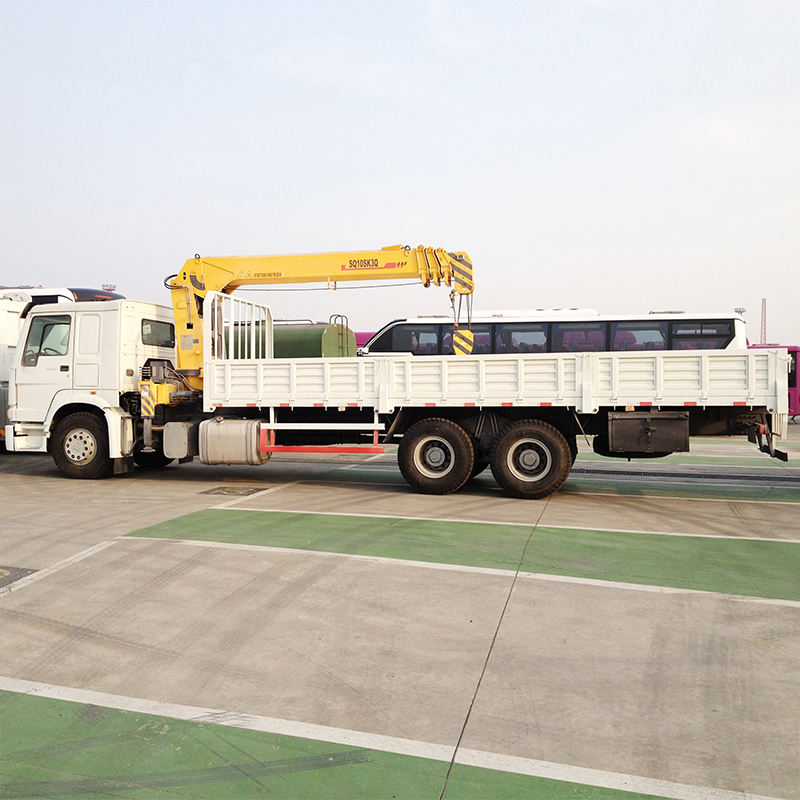

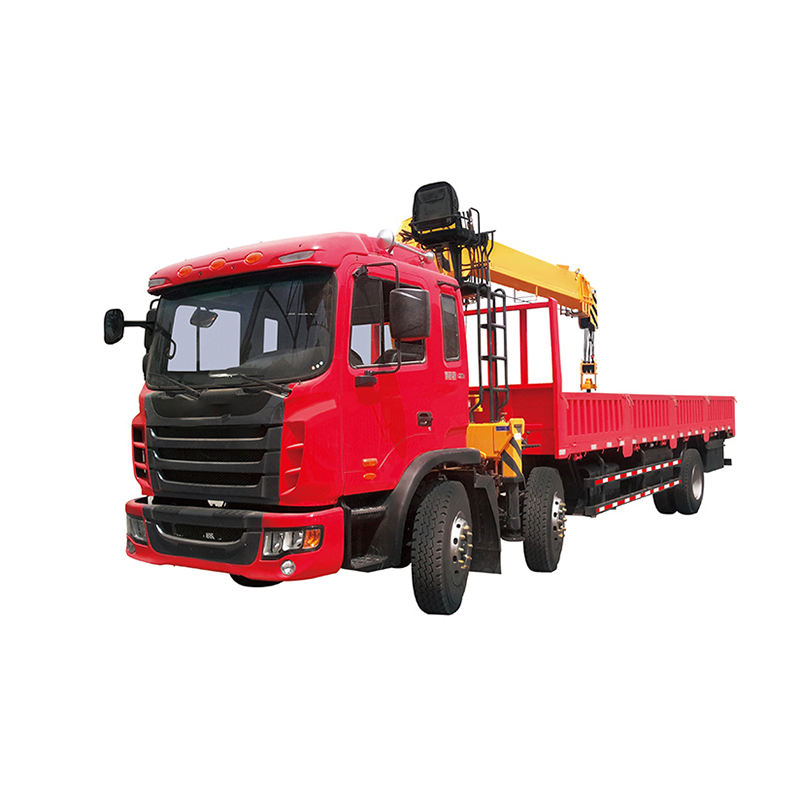

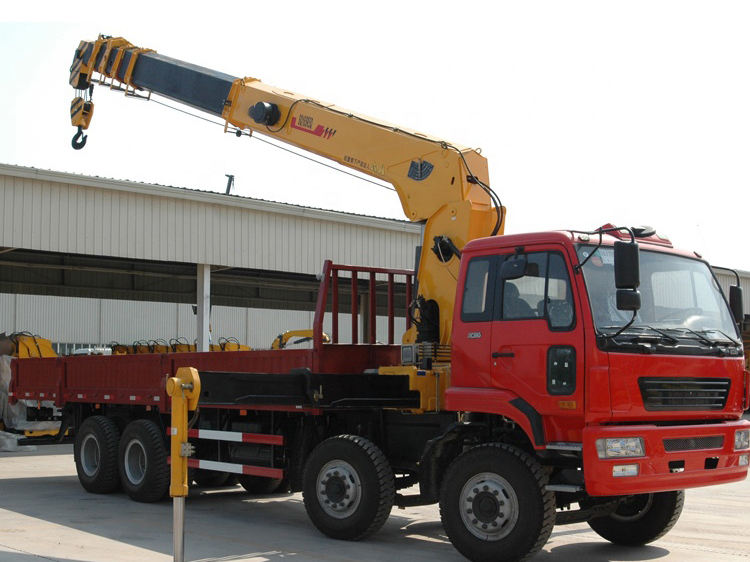

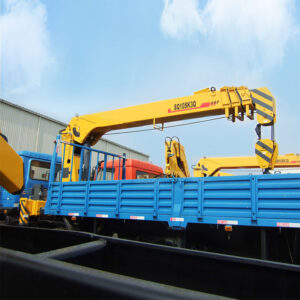

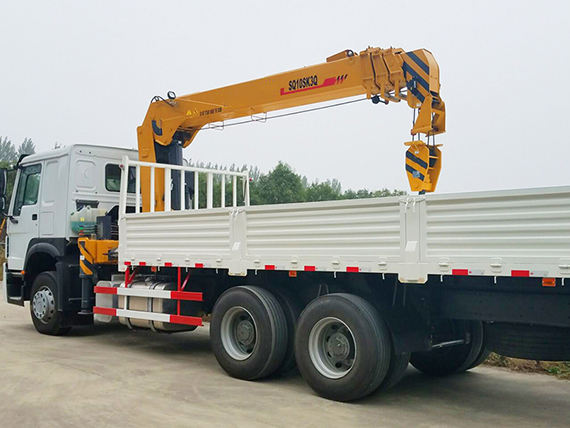

10 Ton Truck Mounted Crane

Introduction

This versatile and high-performance lifting machine is engineered to meet the demands of heavy-duty operations across various industries. With advanced hydraulic technology, robust core components, and impressive lifting capabilities, it offers reliability and efficiency for large-scale projects.

Key Features

Max Lifting Height: Reaches a maximum lifting height of 14 meters, making it suitable for a wide range of industrial applications.
Powerful Hydraulic System: Integrated with top-brand hydraulic cylinder, pump, and valve, ensuring smooth and precise operation. The hydraulic system operates at a maximum pressure of 20MPa, with an oil flow capacity of up to 63L/min for efficient lifting and handling tasks.
Rated Lifting Moment: Delivers a powerful rated lifting moment of 20.1M, providing exceptional performance in handling heavy loads.
Durable Core Components: Features premium core components, including a pressure vessel, motor, bearing, gearbox, engine, pump, and gear, ensuring long-term durability and reliable maintenance requirements.
Heavy-Duty Construction: Weighs 2,160kg, with sturdy construction that ensures stability and durability during demanding operations.
Comprehensive Support: Comes with a machinery test report and video outgoing inspection for quality assurance, backed by a 1-year warranty for added peace of mind.
Robust Oil Tank: Includes a 91L oil tank, designed for prolonged use without frequent refilling, enhancing operational efficiency.

Specifications

Max Lifting Height: 14 meters
Engine Brand: Top Brand
Place of Origin: China
Warranty: 1 Year
Hydraulic Cylinder Brand: Top Brand
Hydraulic Pump Brand: Top Brand
Hydraulic Valve Brand: Top Brand
Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, Other
Weight: 2160kg
Oil Tank Capacity: 91L
Max Pressure of Hydraulic System: 20MPa
Rated Lifting Moment: 20.1M
Max Oil Flow of Hydraulic System: 63L/min
Max Pressure: 26MPa

Packaging and Delivery

Selling Units: Single item
Packaging Dimensions: 535 × 243 × 320cm
Gross Weight: 630kg

Applications

Ideal for industrial lifting and handling tasks in construction, manufacturing, and large-scale engineering projects.
Suitable for operations requiring precision and reliability in heavy-duty lifting.

Why Choose This Product

Efficient & Reliable: Combines advanced hydraulic technology with robust engineering for superior lifting performance.
Durable & User-Friendly: Built to endure rigorous conditions while remaining easy to operate and maintain.
Comprehensive Support & Warranty: Ensures peace of mind through quality assurance checks and strong after-sales service.
